- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS Ultra
- Marketing Information

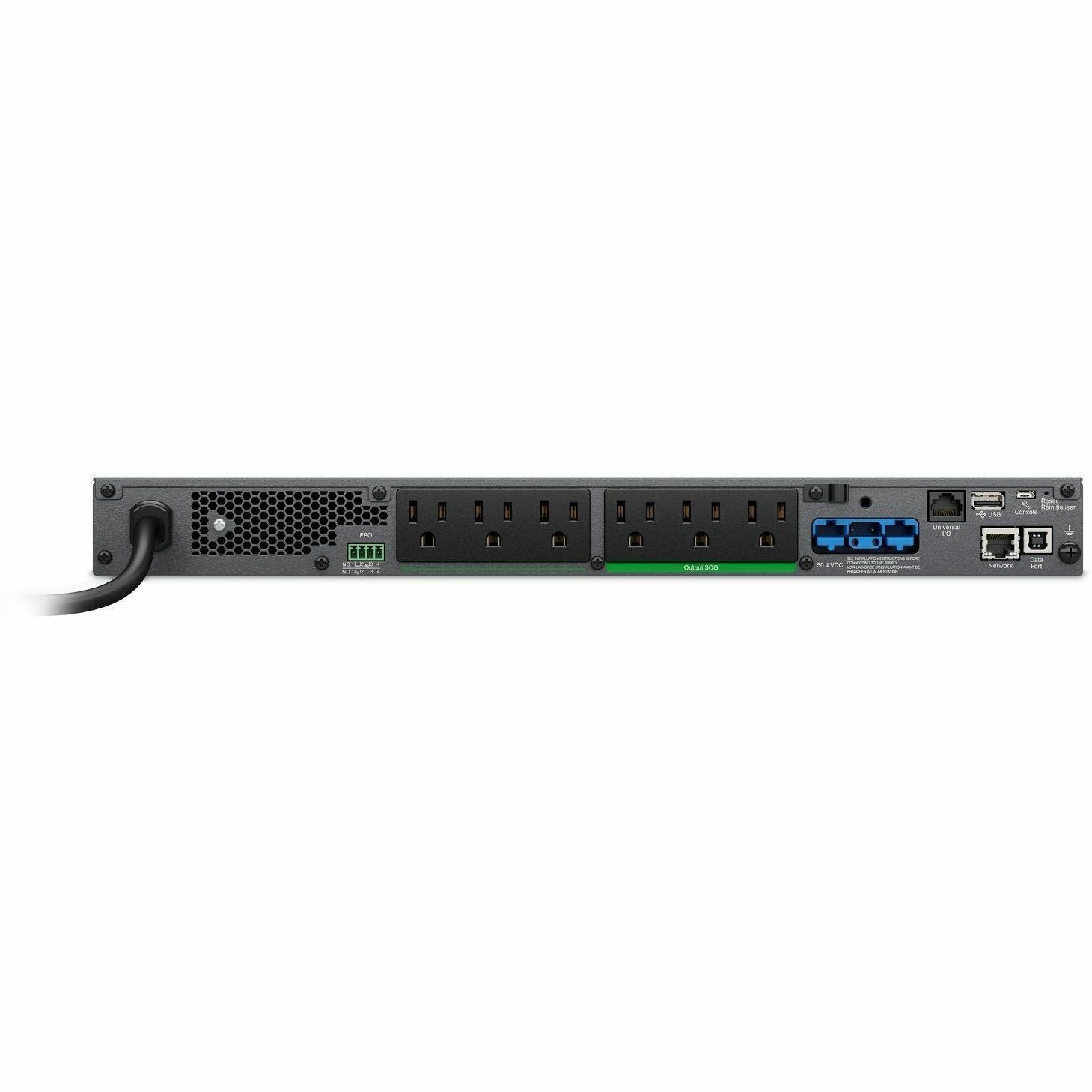

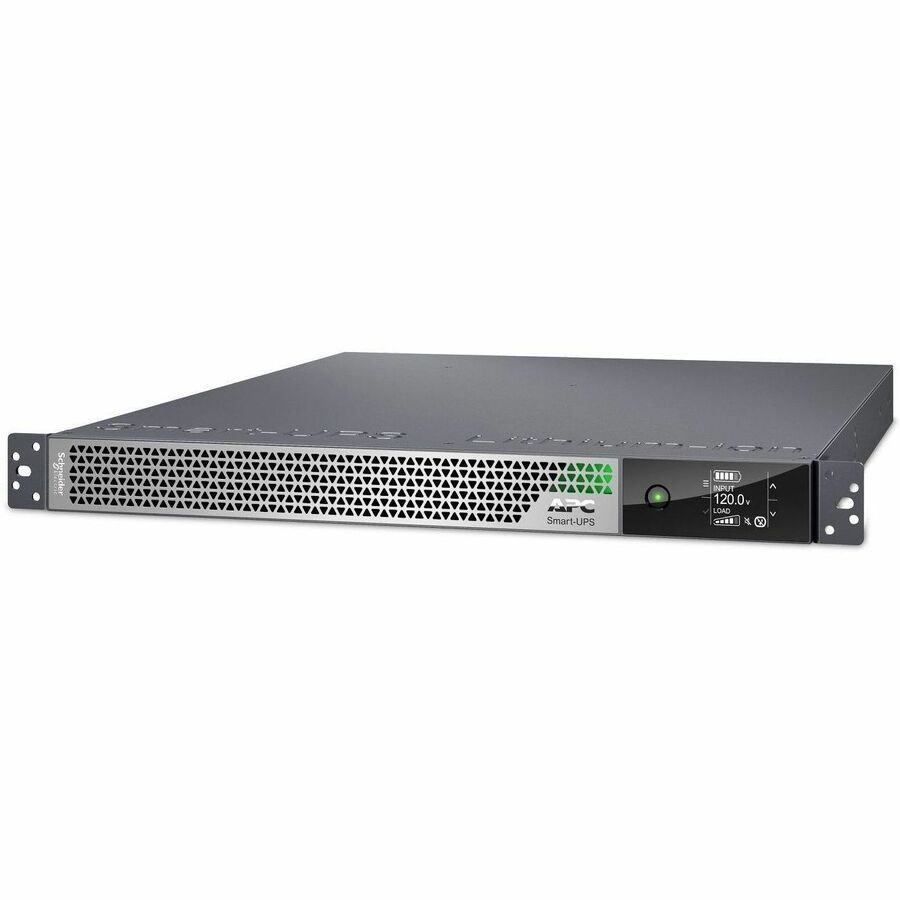

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1.5kVA on-line 1U rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
- Packaged Quantity
- 1 / Pack
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 5 Year
- Additional Warranty Information
The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- Technical Information
- Plug/Connector Type
- NEMA 5-20P
- Receptacle Type
- NEMA 5-15R
- Receptacle Detail
- 6 x NEMA 5-15R
- Cord Length
- 7.90 ft
- Phase
- Single Phase
- Application/Usage
- Server
- Virtual Machine
- Hyperconverged Infrastructure (HCI)
- IT
- Network
- Business
- Electronic
- Storage
- Voice/Data Network
- Medical Laboratory
- Light Industrial Application
- Features
- Built-in Bypass Switch
- Audible/Visual Alarm
- Power Description
- Load Capacity (VA)
- 1500 VA
- Load Capacity (Watt)
- 1300 W
- Input Voltage
- 120 V AC
- 125 V AC
- Output Voltage
- 120 V AC
- 125 V AC
- Input Frequency
- 50 Hz
- 60 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Sine Wave
- Pure Sine Wave
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- Network Management Card 3 (NMC3)
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- EPO Port
- Yes
- Battery Information
- DC System Voltage
- 50 V DC
- Number of Batteries
- 1
- Battery Characteristics
- Internal Battery
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Backup/Run Time (Full Load)
- 5.06 Minute
- Backup/Run Time (Half Load)
- 10.63 Minute
- Typical Battery Recharge Time
- 1.50 Hour
- Replaceable Battery
- Yes
- Built-in Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Elevation
- 10000 ft
- Maximum Storage Elevation
- 50000 ft
- Sound Emission
- 55 dB
- Physical Characteristics
- Color Family
- Silver
- Product Color
- Silver Gray
- Height
- 1.70"
- Width
- 17"
- Depth
- 16.90"
- Rack Height
- 1U
- Form Factor
- Rack/Tower
- Rack/Tower/Wall/Ceiling/Under Desk Mountable
- Mounting Preference
- No Preference
- Weight (Approximate)
- 23.10 lb
- Miscellaneous
- Package Contents
- Smart-UPS Ultra 1500VA Rack/Tower UPS
- RJ45 Cable
- USB Cable
- Rack Mounting Brackets
- Installation Guide
- Warranty Card
- Certifications & Standards
- UL/cUL listed
- FCC
- UL 1778
- CSA C22.2 No.107.3-05
- FCC Part 15 class A
- IP20
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
